UniFi Protect Binding

This binding integrates Ubiquiti UniFi Protect into openHAB. It connects to your Protect NVR/CloudKey/UNVR and provides live events and configurable settings for Cameras, Floodlights, Sensors, Doorlocks, and Chimes.

It primarily uses the Private API for device control and monitoring, with the official Protect Integration API (Public API) used for real-time event streaming, WebRTC/RTSPS streams, and talkback sessions. The binding automatically manages API authentication, including auto-creation of API keys when needed.

Features

• Supports multiple Protect devices (Cameras, Doorbells, Floodlights, Sensors)
• Has granular triggers and channels for realtime motion events including AI object detection, audio, and line crossing events.
• Uses websockets for realtime updates without polling
• Supports WebRTC streaming for cameras with very low server CPU overhead
• Supports 2-way audio for cameras that support it
• Uses STUN for external access to cameras when outside your local network (e.g. when using the openHAB cloud service)
• Provides general purpose image snapshot API endpoints for cameras

Native Binaries

• Uses go2rtc (opens new window) and FFmpeg (opens new window) for WebRTC playback and publishing.
• The binding will automatically download and extract the binaries if they are not present on linux, mac, windows and freeBSD.
• By default the binding will first try and find the binaries on the system PATH before downloading them.
• If your platform is not supported, or downloading the binaries is not possible, install the binaries manually and ensure they are on the system PATH.

See Binding Configuration to enable/disable downloading the binaries.

Supported Things

• nvr (Bridge): The Protect NVR/CloudKey/UNVR. Required to discover and manage child devices. Provides NVR monitoring channels.
• camera: A Protect camera. Channels are added dynamically based on device capabilities (mic, HDR, smart detection, PTZ, etc.).
• light: A Protect Floodlight.
• sensor: A Protect environmental/contact sensor.
• doorlock: A Protect Smart Doorlock.
• chime: A Protect Chime device.

Discovery

• Add the nvr bridge by entering its Hostname/IP, username, and password.
• The binding will automatically create an API key for the Public API if not provided.
• Once the NVR is ONLINE, Cameras, Floodlights, Sensors, Doorlocks, and Chimes are discovered automatically and appear in the Inbox.
• Approve discovered things to add them to your system. Manual creation is also possible using deviceId.

Binding Configuration

Name	Type	Description	Required
downloadBinaries	boolean	Download binaries if they are not on the system PATH. This setting controls whether the binding should download the native binaries if they are not found. By default, the binding will download the binaries if they are not on the system PATH for supported platforms	yes
useStun	boolean	Use STUN for external IP discovery. This will allow camera streams to work behind NATs when outside your local network (e.g. when using the openHAB cloud service) and is enabled by default.	yes

Note: Enabling STUN will incur an approximately 5-second delay delivering the stream to clients as it discovers your external IP and pins a port on your router for streams. If you are not using the openHAB cloud service with cameras, disabling STUN will allow for near-instant stream starts (video will start within a second of loading) on your local network or over a VPN.

Thing Configuration

NVR (Bridge) nvr

Name	Type	Description	Default	Required	Advanced
hostname	text	Hostname or IP address of the NVR	N/A	yes	no
port	number	Port number for the NVR	443	no	yes
username	text	Local username for authentication	N/A	yes	no
password	text	Password for the local user	N/A	yes	no
token	text	Bearer token used for Public API authentication	N/A	no	yes

Authentication:

The binding requires a local UniFi Protect username and password to access both the Private and Public APIs.

• API Key (Token): If not provided, the binding will automatically create an API key named openHAB-<thing-id> for the Public API. The key is stored in your thing configuration and reused on restarts.
• Private API: Uses cookie-based authentication with the provided username/password. Session cookies are persisted and automatically refreshed when needed.

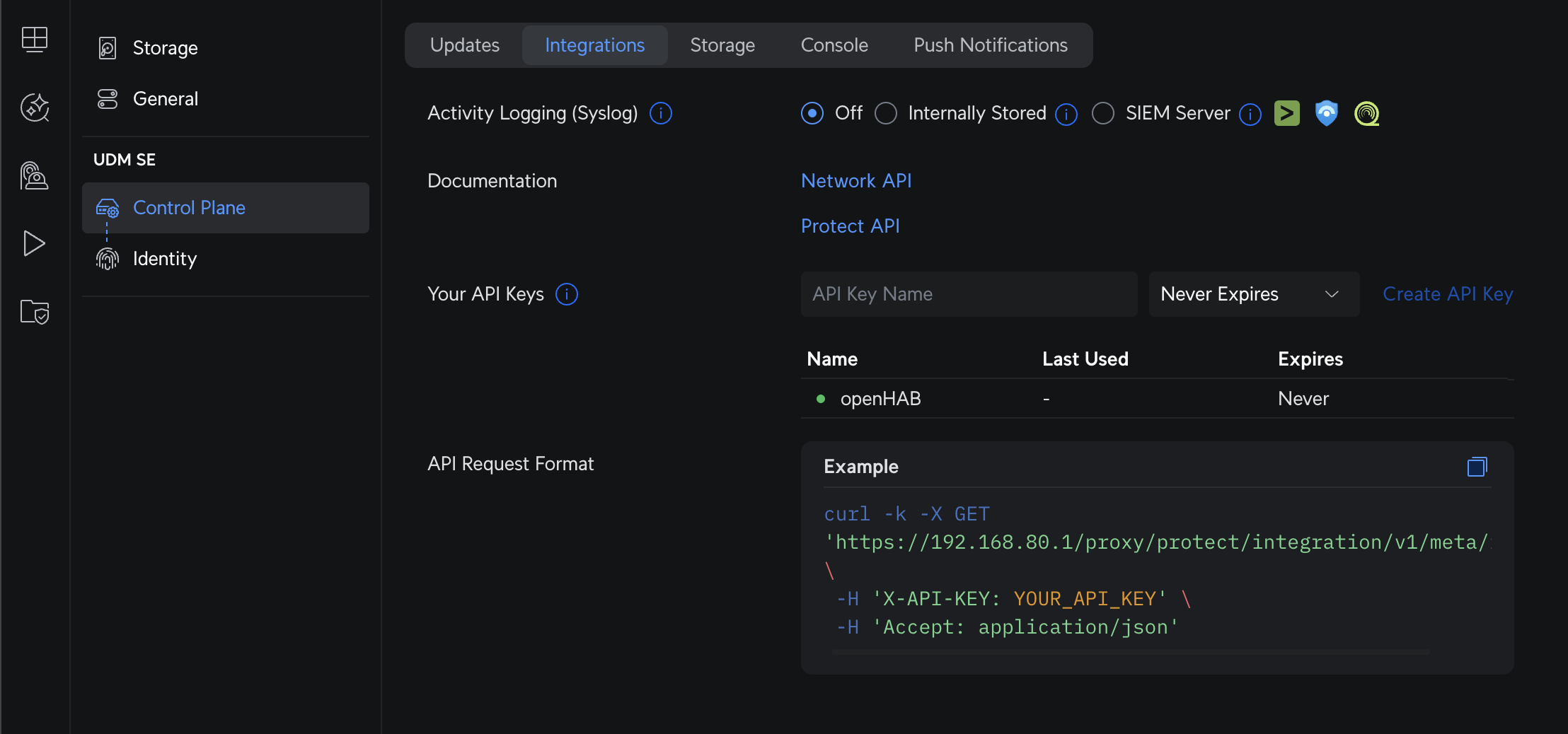

Manual API Key Creation (optional):

If you prefer to manually create an API key:

1. In the UniFi Protect UI, go to Settings → Control Plane → Integrations and create an API token.
2. Copy the token and paste it into the token field in the NVR bridge configuration.

camera Configuration

Name	Type	Description	Required
deviceId	text	Unique device identifier of the camera	yes
enableWebRTC	boolean	Enable WebRTC streaming	yes

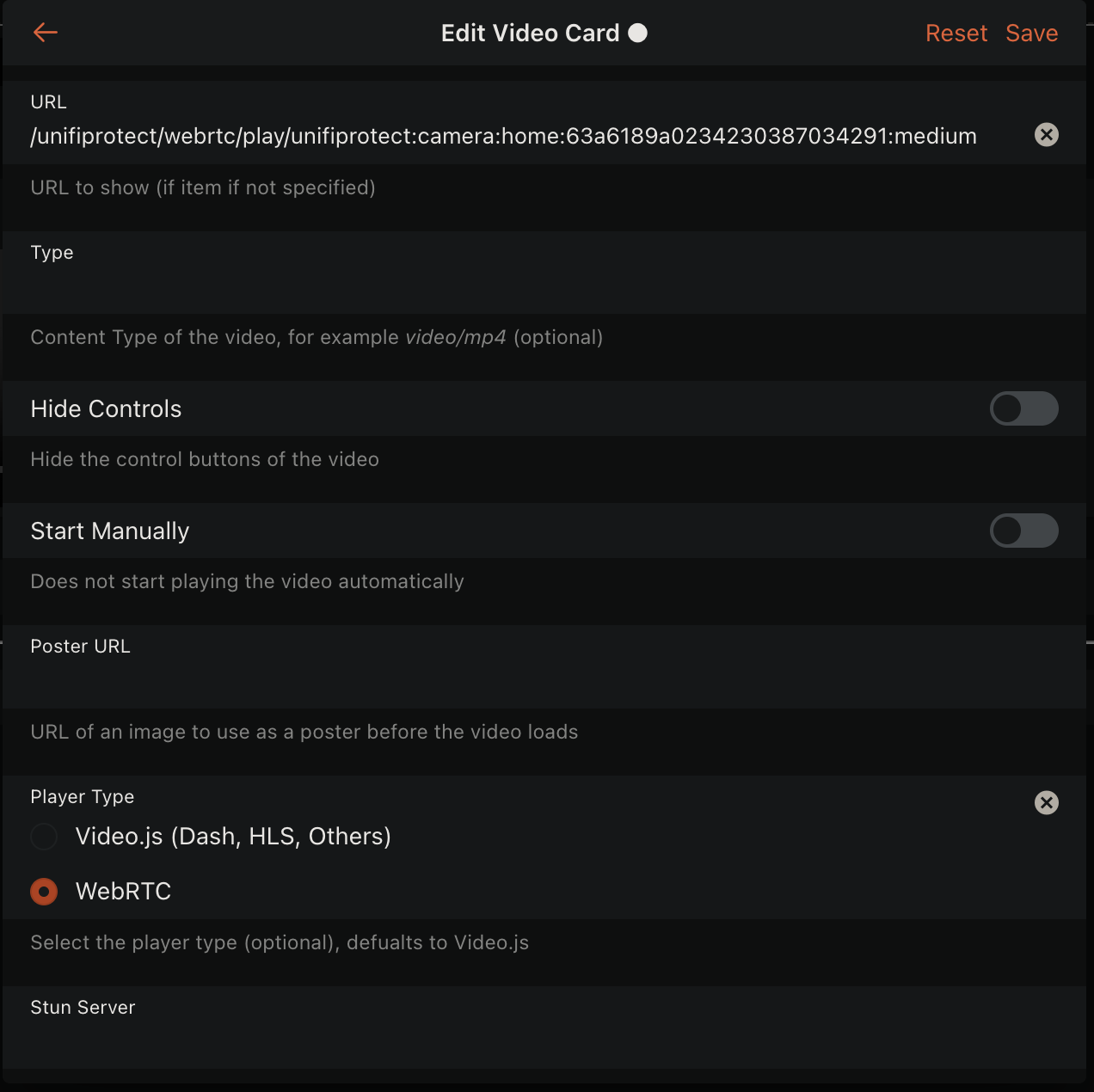

When WebRTC is enabled, the camera will be able to stream through openHAB using WebRTC. You can disable WebRTC by setting enableWebRTC to false.

light Configuration

Name	Type	Description	Required
deviceId	text	Unique device identifier of the floodlight	yes

sensor Configuration

Name	Type	Description	Required
deviceId	text	Unique device identifier of the sensor	yes

doorlock Configuration

Name	Type	Description	Required
deviceId	text	Unique device identifier of the doorlock	yes

chime Configuration

Name	Type	Description	Required
deviceId	text	Unique device identifier of the chime	yes

Channels

Below are the channels exposed by each thing type. Some camera channels are created dynamically depending on device capabilities.

nvr Bridge Channels

The NVR bridge provides comprehensive monitoring channels for system health, storage, and configuration.

Channel ID	Item Type	RW	Description	Advanced
storage-total	Number:DataAmount	R	Total storage capacity	false
storage-used	Number:DataAmount	R	Used storage	false
storage-available	Number:DataAmount	R	Available storage	false
storage-utilization	Number:Dimensionless	R	Storage utilization percentage	false
recording-retention	Number:Time	R	Recording retention duration	false
nvr-storage-device-healthy	Switch	R	All storage devices healthy	false
nvr-camera-utilization	Number	R	Camera capacity utilization	true
nvr-recording-mode	String	R	Global camera recording mode	true
nvr-recording-disabled	Switch	R	Recording globally disabled	true
nvr-recording-motion-only	Switch	R	Recording motion only	true
nvr-is-away	Switch	R	NVR away mode status	true
nvr-geofencing-enabled	Switch	R	Geofencing enabled	true
nvr-smart-detection-available	Switch	R	Smart detection available	true
nvr-insights-enabled	Switch	R	Insights enabled	true
nvr-can-auto-update	Switch	R	Can auto-update	true
nvr-last-update-at	DateTime	R	Last update timestamp	true
nvr-protect-updatable	Switch	R	Protect is updatable	true

camera Channels

• The following are dynamically created depending on the supported features.
• Advanced channels are hidden by default in the MainUI, select "Show Advanced" to see them.

Basic Control & Settings

Channel ID	Item Type	RW	Description	Advanced
mic-volume	Dimmer	RW	Microphone volume (0-100)	true
video-mode	String	RW	Camera video mode (default, highFps, sport, ...)	true
hdr-type	String	RW	HDR mode (auto, on, off)	true
osd-name	Switch	RW	Show name on OSD	true
osd-date	Switch	RW	Show date on OSD	true
osd-logo	Switch	RW	Show logo on OSD	true
led-enabled	Switch	RW	Enable/disable camera status LED	true
active-patrol-slot	Number	RW	Active PTZ patrol slot (set 0 to stop)	false

Streaming URLs

Channel ID	Item Type	RW	Description	Advanced
webrtc-url-high	String	R	WebRTC stream URL for high quality	true
webrtc-url-medium	String	R	WebRTC stream URL for medium quality	true
webrtc-url-low	String	R	WebRTC stream URL for low quality	true
webrtc-url-package	String	R	WebRTC stream URL for package quality	true
rtsp-url-high	String	R	RTSP stream URL for high quality	true
rtsp-url-medium	String	R	RTSP stream URL for medium quality	true
rtsp-url-low	String	R	RTSP stream URL for low quality	true
rtsp-url-package	String	R	RTSP stream URL for package quality	true

Snapshots & Images

Channel ID	Item Type	RW	Description	Advanced
snapshot	Image	R	Snapshot image. Send a REFRESH command to update	false
snapshot-url	String	R	Snapshot image URL	false
motion-snapshot	Image	R	Snapshot captured around motion event	false
smart-detect-audio-snapshot	Image	R	Snapshot captured around smart audio detection	false
smart-detect-zone-snapshot	Image	R	Snapshot captured around smart zone detection	false
smart-detect-line-snapshot	Image	R	Snapshot captured around smart line detection	false
smart-detect-loiter-snapshot	Image	R	Snapshot captured around smart loiter detection	false
motion-thumbnail	Image	R	Motion event thumbnail image	false
motion-heatmap	Image	R	Motion event heatmap image	false

Motion & Detection

Channel ID	Item Type	RW	Description	Advanced
motion-contact	Contact	R	Motion state (OPEN = motion detected)	false
smart-detect-audio-contact	Contact	R	Smart audio detection active state	false
smart-detect-zone-contact	Contact	R	Smart zone detection active state	false
smart-detect-line-contact	Contact	R	Smart line detection active state	false
smart-detect-loiter-contact	Contact	R	Smart loiter detection active state	false
is-motion-detected	Switch	R	Motion currently detected	false
last-motion	DateTime	R	Timestamp of last motion	true
last-smart-detect	DateTime	R	Timestamp of last smart detection	false
last-smart-detect-types	String	R	Types of last smart detection (comma-separated)	false

Doorbell

Channel ID	Item Type	RW	Description	Advanced
doorbell-default-message	String	RW	Default doorbell LCD message text	false
doorbell-default-message-reset-timeout	Number:Time	RW	Default doorbell LCD message reset timeout	true
doorbell-ring-volume	Dimmer	RW	Doorbell ring volume (0-100)	true
doorbell-chime-duration	Number:Time	RW	Doorbell chime duration	true
lcd-message	String	R	Current LCD message text	false
is-ringing	Switch	R	Doorbell is currently ringing	false
last-ring	DateTime	R	Timestamp of last doorbell ring	true
ring-contact	Contact	R	Ring state (OPEN = ring detected)	false
ring-snapshot	Image	R	Snapshot captured around ring event	false

Device Status & Health

Channel ID	Item Type	RW	Description	Advanced
is-connected	Switch	R	Camera is connected	false
is-dark	Switch	R	Scene is currently dark	false
is-recording	Switch	R	Camera is currently recording	false
is-smart-detected	Switch	R	Smart detection currently active	false
is-live-heatmap-enabled	Switch	R	Live heatmap enabled	true
video-reconfiguration-in-progress	Switch	R	Video reconfiguration in progress	true
device-state	String	R	Device operational state	true
device-uptime	Number:Time	R	Device uptime	true
uptime-started	DateTime	R	Device up since timestamp	true
connected-since	DateTime	R	Connected since timestamp	true
last-seen	DateTime	R	Last seen timestamp	true
last-smart	DateTime	R	Last smart detection timestamp	true
connection-host	String	R	Connection host address	true
last-disconnect	DateTime	R	Last disconnect timestamp	true
connection-state	String	R	Connection state	true
state	String	R	Device state	true
wired-connection-state	String	R	Wired connection state	true
physical-connection-rate	Number:DataTransferRate	R	Physical connection rate	true

Network & WiFi

Channel ID	Item Type	RW	Description	Advanced
phy-rate	Number	R	Physical connection rate	true
is-probing-for-wifi	Switch	R	Probing for WiFi	true
is-poor-network	Switch	R	Network quality is poor	true
is-wireless-uplink-enabled	Switch	R	Wireless uplink enabled	true
ap-mac	String	R	Access point MAC address	true
wifi-channel	Number	R	WiFi channel number	true
wifi-frequency	Number:Frequency	R	WiFi frequency	true
wifi-signal-quality	Number:Dimensionless	R	WiFi signal quality percentage	true
wifi-signal-strength	Number:Power	R	WiFi signal strength (dBm)	true

Storage & Recording

Channel ID	Item Type	RW	Description	Advanced
storage-used	Number:DataAmount	R	Storage used by this camera	false
storage-rate	Number:DataTransferRate	R	Recording storage rate	true

Power & Battery

Channel ID	Item Type	RW	Description	Advanced
voltage	Number:ElectricPotential	R	Input voltage	true
battery-percentage	Number:Dimensionless	R	Battery charge percentage	false
battery-is-charging	Switch	R	Battery is charging	false
battery-sleep-state	String	R	Battery sleep state	true

Recording & Detection Settings

Channel ID	Item Type	RW	Description	Advanced
recording-mode	String	RW	Recording mode	true
motion-detection-enabled	Switch	RW	Enable/disable motion detection	true
use-global-settings	Switch	RW	Use NVR global settings instead of per-camera	true
ir-mode	String	RW	IR LED mode	true
hdr-enabled	Switch	RW	Enable HDR mode	true
high-fps-enabled	Switch	RW	Enable high frame rate mode	true
mic-enabled	Switch	RW	Enable/disable microphone	true
camera-speaker-volume	Dimmer	RW	Speaker volume (0-100)	true
camera-zoom-level	Dimmer	RW	Optical zoom level (0-100)	false
camera-wdr-level	Number	RW	Wide dynamic range level (0-3)	true
device-reboot	Switch	W	Reboot device (send ON command)	true

Smart Detection Controls

Channel ID	Item Type	RW	Description	Advanced
smart-detect-person-enabled	Switch	RW	Enable person detection	true
smart-detect-vehicle-enabled	Switch	RW	Enable vehicle detection	true
smart-detect-face-enabled	Switch	RW	Enable face detection	true
smart-detect-license-plate-enabled	Switch	RW	Enable license plate detection	true
smart-detect-package-enabled	Switch	RW	Enable package detection	true
smart-detect-animal-enabled	Switch	RW	Enable animal detection	true

PTZ Controls

Channel ID	Item Type	RW	Description	Advanced
ptz-relative-pan	Number	RW	Relative pan (negative = left, positive = right)	false
ptz-relative-tilt	Number	RW	Relative tilt (negative = down, positive = up)	false
ptz-relative-zoom	Number	RW	Relative zoom (negative = out, positive = in)	false
ptz-center	String	W	Center on coordinates (format: x,y,z where 0-1000)	false
ptz-set-home	Switch	W	Set home position to current (send ON)	true
ptz-create-preset	String	W	Create preset at current position (slot,name)	true
ptz-delete-preset	Number	W	Delete preset by slot number	true

Trigger channels (for rules):

• Triggers Channels are hidden by default in the MainUI, select "Show Advanced" to see them.

Trigger Channel ID	Payload (if any)	Description
ring	PRESSED, RELEASED	Doorbell ring event
motion-start	none	Motion started
motion-update	none	Motion updated (debounced update event)
smart-detect-audio-start	alrmSmoke, alrmCmonx, alrmSiren, alrmBabyCry, alrmSpeak, alrmBark, alrmBurglar, alrmCarHorn, alrmGlassBreak, none	Smart audio detection started
smart-detect-audio-update	alrmSmoke, alrmCmonx, alrmSiren, alrmBabyCry, alrmSpeak, alrmBark, alrmBurglar, alrmCarHorn, alrmGlassBreak, none	Smart audio detection updated
smart-detect-zone-start	person, vehicle, package, licensePlate, face, animal, none	Zone smart detection started
smart-detect-zone-update	person, vehicle, package, licensePlate, face, animal, none	Zone smart detection updated
smart-detect-line-start	person, vehicle, package, licensePlate, face, animal, none	Line smart detection started
smart-detect-line-update	person, vehicle, package, licensePlate, face, animal, none	Line smart detection updated
smart-detect-loiter-start	person, vehicle, package, licensePlate, face, animal, none	Loiter smart detection started
smart-detect-loiter-update	person, vehicle, package, licensePlate, face, animal, none	Loiter smart detection updated

Snapshot Channels

Snapshot channels can be configured to take a snapshot before or after the trigger event or item state change. By default, a snapshot is taken before the trigger event fires or item state updates so its immediately available for use in rules. This however can cause a slight delay in the rule execution if the snapshot itself is delayed. The order in which the snapshot is taken can be configured via the snapshot channel configuration through textual files or the MainUI. To take a snapshot after the event trigger fires or item state updates, you can set the sequence to "after". If you do not want to take a snapshot on a trigger event or item state update, you can set the sequence to "none".

Motion Contact Channels

Motion contact channels are configured to latch/close after a defined delay after a motion event. By default, the contact is considered latched/closed after 5 seconds of no motion events. This delay can be configured via the contact channel configuration through textual files or the MainUI.

Floodlight (light)

Channel ID	Item Type	RW	Description	Advanced
light	Switch	RW	Main floodlight on/off (forces light)	false
is-dark	Switch	R	Scene is currently dark	false
pir-motion	Trigger	-	PIR motion event	false
last-motion	DateTime	R	Timestamp of last motion	true
light-mode	String	RW	Light mode (always, motion, off)	true
enable-at	String	RW	When mode is relevant (fulltime, dark)	true
indicator-enabled	Switch	RW	Status LED indicator on floodlight	true
pir-duration	Number:Time	RW	How long the light stays on after motion	true
pir-sensitivity	Number:Dimensionless	RW	PIR motion sensitivity (0-100)	true
led-level	Number	RW	LED brightness level (1-6)	true
light-mode-advanced	String	RW	Advanced light mode settings	true
device-reboot	Switch	W	Reboot device (send ON command)	true

Sensor (sensor)

Channel ID	Item Type	RW	Description	Advanced
battery	Number	R	Battery charge level (%)	false
contact	Contact	R	Contact state (OPEN/CLOSED)	false
temperature	Number:Temperature	R	Ambient temperature	false
humidity	Number	R	Ambient humidity	false
illuminance	Number:Illuminance	R	Ambient light (Lux)	false
alarm-contact	Contact	R	Smoke/CO alarm contact (OPEN = alarming)	false
water-leak-contact	Contact	R	Water leak contact (OPEN = leak)	false
tamper-contact	Contact	R	Tamper contact (OPEN = tampering)	false
sensor-tamper-reset	Switch	W	Reset tamper status (send ON)	true
device-reboot	Switch	W	Reboot device (send ON command)	true

Doorlock (doorlock)

Channel ID	Item Type	RW	Description	Advanced
lock	Switch	RW	Lock control (ON=locked, OFF=unlocked)	false
lock-status	String	R	Current lock status	false
calibrate	Switch	W	Calibrate lock (send ON)	true
auto-close-time	Number:Time	RW	Auto-close time in seconds	true
battery-percentage	Number:Dimensionless	R	Battery charge percentage	false

Chime (chime)

Channel ID	Item Type	RW	Description	Advanced
play-chime	Switch	W	Play chime sound (send ON)	true
play-buzzer	Switch	W	Play buzzer sound (send ON)	false
volume	Dimmer	RW	Chime volume (0-100)	false
repeat-times	Number	RW	Number of times to repeat sound	true

Trigger channels (for rules):

Trigger Channel ID	Payload (if any)	Description
opened	door, window, garage, leak, none	Sensor opened
closed	door, window, garage, leak, none	Sensor closed
alarm	smoke, CO (optional)	Smoke/CO alarm event
water-leak	door, window, garage, leak, none	Water leak detected
tamper	none	Tampering detected

Real-time Media

If enabled in the binding configuration, openHAB will proxy live media using WebRTC which is compatible with the MainUI video widget.

Stream URLs

The URL for WebRTC streams can be found in 2 different ways

1. As a property on the Camera Thing (webrtc-url-high, webrtc-url-medium, webrtc-url-low, webrtc-url-package)
2. As an Item linked to a channel on the Camera Thing (webrtc-url-high, webrtc-url-medium, webrtc-url-low, webrtc-url-package)

All of the above URLs are relative to the openHAB instance.

The playback URLs can be used in the MainUI video widget by enabling WebRTC in the advanced settings in the video widget and using an above URL or Item as the source.

An example WebRTC stream URL would be:

/unifiprotect/media/play/unifiprotect:camera:home:1234567890:high

Where unifiprotect:camera:home:1234567890 is the camera's Thing UID and high is the quality (high, medium, low, package) if supported by the camera.

You can either use the String URL or select the Item linked to the channel in the MainUI video widget.

It's also highly recommended to use the camera's Snapshot URL property or the Item linked to the snapshot-url channel to get the live snapshot image URL which can be used for the poster image option in the MainUI video widget.

An example snapshot image URL would be:

/unifiprotect/media/image/unifiprotect:camera:home:1234567890

Where unifiprotect:camera:home:1234567890 is the camera's Thing UID. You can append ?quality=high to the URL to get the a higher quality snapshot image if supported by the camera, but can fail if not supported. The default quality level is suitable for most use cases, and supported by all cameras.

Talkback Support (2-way audio)

Some UniFi Protect cameras support "Talkback", which allows you to publish audio back to the camera in a push to talk manner. If supported, you can enable "Two Way Audio" in the MainUI video widget (along with selecting WebRTC under advanced settings in the video widget) which will display a microphone icon for push to talk functionality. This is automatically supported by the binding and will be enabled if supported by the camera.

Full Examples (Textual Configuration)

Replace the IDs with your own thing and item names.

Things (.things)

// Note: Token is optional - it will be auto-created if not provided
Bridge unifiprotect:nvr:myNvr "UniFi Protect NVR" [ hostname="192.168.1.10", username="localadmin", password="your_password" ] {
    Thing camera frontdoor "Front Door Camera" [ deviceId="60546f80e4b0abcd12345678", enableWebRTC=true ]
    Thing light driveway "Driveway Floodlight" [ deviceId="60a1b2c3d4e5f67890123456" ]
    Thing sensor garagedoor "Garage Door Sensor" [ deviceId="60112233445566778899aabb" ]
    Thing doorlock frontdoorlock "Front Door Lock" [ deviceId="60c1d2e3f4a5b67890123456" ]
    Thing chime hallwaychime "Hallway Chime" [ deviceId="60d1e2f3a4b5c67890123456" ]
}

Items (.items)

// NVR Monitoring
Number:DataAmount NVR_Storage_Total        "Total Storage [%.0f GB]"            { channel="unifiprotect:nvr:myNvr:storage-total" }
Number:DataAmount NVR_Storage_Used         "Used Storage [%.0f GB]"             { channel="unifiprotect:nvr:myNvr:storage-used" }
Number:DataAmount NVR_Storage_Available    "Available Storage [%.0f GB]"        { channel="unifiprotect:nvr:myNvr:storage-available" }
Number            NVR_Storage_Utilization  "Storage Utilization [%.1f %%]"      { channel="unifiprotect:nvr:myNvr:storage-utilization" }
Switch            NVR_Devices_Healthy      "All Devices Healthy"                { channel="unifiprotect:nvr:myNvr:nvr-storage-device-healthy" }
Number            NVR_Camera_Util          "Camera Utilization [%.0f %%]"       { channel="unifiprotect:nvr:myNvr:nvr-camera-utilization" }
String            NVR_Recording_Mode       "Recording Mode [%s]"                { channel="unifiprotect:nvr:myNvr:nvr-recording-mode" }
Switch            NVR_Away_Mode            "Away Mode"                          { channel="unifiprotect:nvr:myNvr:nvr-is-away" }

// Camera
Dimmer  Cam_Front_MicVolume        "Mic Volume [%d %%]"                 { channel="unifiprotect:camera:myNvr:frontdoor:mic-volume" }
String  Cam_Front_VideoMode        "Video Mode [%s]"                    { channel="unifiprotect:camera:myNvr:frontdoor:video-mode" }
String  Cam_Front_HDR              "HDR [%s]"                           { channel="unifiprotect:camera:myNvr:frontdoor:hdr-type" }
Switch  Cam_Front_OSD_Name         "OSD Name"                           { channel="unifiprotect:camera:myNvr:frontdoor:osd-name" }
Switch  Cam_Front_OSD_Date         "OSD Date"                           { channel="unifiprotect:camera:myNvr:frontdoor:osd-date" }
Switch  Cam_Front_OSD_Logo         "OSD Logo"                           { channel="unifiprotect:camera:myNvr:frontdoor:osd-logo" }
Switch  Cam_Front_LED              "Status LED"                         { channel="unifiprotect:camera:myNvr:frontdoor:led-enabled" }
Number  Cam_Front_PatrolSlot       "PTZ Patrol Slot [%d]"               { channel="unifiprotect:camera:myNvr:frontdoor:active-patrol-slot" }
String  Cam_Front_WebRTC_High      "WebRTC High [%s]"                   { channel="unifiprotect:camera:myNvr:frontdoor:webrtc-url-high" }
Contact Cam_Front_Motion           "Motion [%s]"                        { channel="unifiprotect:camera:myNvr:frontdoor:motion-contact" }
Image   Cam_Front_MotionSnapshot   "Motion Snapshot"                    { channel="unifiprotect:camera:myNvr:frontdoor:motion-snapshot" }
Switch  Cam_Front_Connected        "Camera Connected"                   { channel="unifiprotect:camera:myNvr:frontdoor:is-connected" }
Switch  Cam_Front_IsDark           "Is Dark Outside"                    { channel="unifiprotect:camera:myNvr:frontdoor:is-dark" }
Number  Cam_Front_WiFi_Quality     "WiFi Quality [%.0f %%]"             { channel="unifiprotect:camera:myNvr:frontdoor:wifi-quality" }
DateTime Cam_Front_LastMotion      "Last Motion [%1$ta %1$tR]"          { channel="unifiprotect:camera:myNvr:frontdoor:last-motion" }

// Floodlight
Switch  Light_Driveway_OnOff       "Driveway Light"                     { channel="unifiprotect:light:myNvr:driveway:light" }
Switch  Light_Driveway_IsDark      "Is Dark"                            { channel="unifiprotect:light:myNvr:driveway:is-dark" }
DateTime Light_Driveway_LastMotion "Last Motion [%1$ta %1$tR]"          { channel="unifiprotect:light:myNvr:driveway:last-motion" }
String  Light_Driveway_Mode        "Mode [%s]"                          { channel="unifiprotect:light:myNvr:driveway:light-mode" }
String  Light_Driveway_EnableAt    "Enable At [%s]"                     { channel="unifiprotect:light:myNvr:driveway:enable-at" }
Switch  Light_Driveway_Indicator   "Indicator LED"                      { channel="unifiprotect:light:myNvr:driveway:indicator-enabled" }
Number  Light_Driveway_PIR_Dur     "PIR Duration [%.0f ms]"             { channel="unifiprotect:light:myNvr:driveway:pir-duration" }
Number  Light_Driveway_PIR_Sens    "PIR Sensitivity [%.0f]"             { channel="unifiprotect:light:myNvr:driveway:pir-sensitivity" }
Number  Light_Driveway_LED_Level   "LED Level [%.0f]"                   { channel="unifiprotect:light:myNvr:driveway:led-level" }

// Sensor
Number  Sensor_Garage_Battery      "Battery [%.0f %%]"                  { channel="unifiprotect:sensor:myNvr:garagedoor:battery" }
Contact Sensor_Garage_Contact      "Contact [%s]"                       { channel="unifiprotect:sensor:myNvr:garagedoor:contact" }
Number:Temperature Sensor_Garage_T "Temperature [%.1f %unit%]"          { channel="unifiprotect:sensor:myNvr:garagedoor:temperature" }
Number  Sensor_Garage_Humidity     "Humidity [%.0f %%]"                 { channel="unifiprotect:sensor:myNvr:garagedoor:humidity" }
Number:Illuminance Sensor_Garage_L "Illuminance [%.0f lx]"              { channel="unifiprotect:sensor:myNvr:garagedoor:illuminance" }
Contact Sensor_Garage_Alarm        "Alarm [%s]"                         { channel="unifiprotect:sensor:myNvr:garagedoor:alarm-contact" }
Contact Sensor_Garage_Leak         "Leak [%s]"                          { channel="unifiprotect:sensor:myNvr:garagedoor:water-leak-contact" }
Contact Sensor_Garage_Tamper       "Tamper [%s]"                        { channel="unifiprotect:sensor:myNvr:garagedoor:tamper-contact" }

// Doorlock
Switch  Lock_Front_Lock            "Front Door Lock"                    { channel="unifiprotect:doorlock:myNvr:frontdoorlock:lock" }
String  Lock_Front_Status          "Lock Status [%s]"                   { channel="unifiprotect:doorlock:myNvr:frontdoorlock:lock-status" }
Number:Time Lock_Front_AutoClose   "Auto-Close Time [%.0f s]"           { channel="unifiprotect:doorlock:myNvr:frontdoorlock:auto-close-time" }
Number  Lock_Front_Battery         "Battery [%.0f %%]"                  { channel="unifiprotect:doorlock:myNvr:frontdoorlock:battery-percentage" }

// Chime
Dimmer  Chime_Hallway_Volume       "Chime Volume [%d %%]"               { channel="unifiprotect:chime:myNvr:hallwaychime:volume" }
Number  Chime_Hallway_Repeat       "Repeat Times [%.0f]"                { channel="unifiprotect:chime:myNvr:hallwaychime:repeat-times" }

Sitemap (.sitemap)

sitemap home label="Home" {
    Frame label="Front Door Camera" {
        Text item=Cam_Front_Motion
        Image item=Cam_Front_MotionSnapshot
    }
    Frame label="Driveway Floodlight" {
        Switch item=Light_Driveway_OnOff
        Text item=Light_Driveway_IsDark
        Text item=Light_Driveway_LastMotion
        Selection item=Light_Driveway_Mode mappings=[always="Always", motion="Motion", off="Off"]
        Selection item=Light_Driveway_EnableAt mappings=[fulltime="Full time", dark="Dark"]
        Setpoint item=Light_Driveway_PIR_Sens minValue=0 maxValue=100 step=1
        Setpoint item=Light_Driveway_LED_Level minValue=1 maxValue=6 step=1
    }
    Frame label="Garage Sensor" {
        Text item=Sensor_Garage_Contact
        Text item=Sensor_Garage_T
        Text item=Sensor_Garage_Humidity
        Text item=Sensor_Garage_L
        Text item=Sensor_Garage_Battery
    }
}

Rules

Examples showing trigger channels.

// Camera motion start/update
rule "Front door motion alert"
when
    Channel "unifiprotect:camera:myNvr:frontdoor:motion-start" triggered
then
    logInfo("protect", "Front door motion started")
end

rule "Front door motion update"
when
    Channel "unifiprotect:camera:myNvr:frontdoor:motion-update" triggered
then
    logInfo("protect", "Front door motion update")
end

// Camera smart detection with payload
rule "Front door smart zone detect"
when
    Channel "unifiprotect:camera:myNvr:frontdoor:smart-detect-zone-start" triggered
then
    // Access payload from the trigger channel event (person, vehicle, package, licensePlate, face, animal, none)
    val String payload = receivedEvent.getEvent()
    logInfo("protect", "Smart zone detection started: {}", payload)
end

rule "Front door smart zone update"
when
    Channel "unifiprotect:camera:myNvr:frontdoor:smart-detect-zone-update" triggered
then
    val String payload = receivedEvent.getEvent()
    logInfo("protect", "Smart zone detection updated: {}", payload)
end

// Camera smart audio detect with payload
rule "Front door smart audio detect"
when
    Channel "unifiprotect:camera:myNvr:frontdoor:smart-audio-detect-start" triggered
then
    val String payload = receivedEvent.getEvent() // alrmSmoke, alrmCmonx, alrmSiren, alrmBabyCry, alrmSpeak, alrmBark, alrmBurglar, alrmCarHorn, alrmGlassBreak, none
    logInfo("protect", "Smart audio detected: {}", payload)
end

rule "Front door smart audio update"
when
    Channel "unifiprotect:camera:myNvr:frontdoor:smart-audio-detect-update" triggered
then
    val String payload = receivedEvent.getEvent()
    logInfo("protect", "Smart audio detection updated: {}", payload)
end

// Camera doorbell ring with payload filtering
rule "Front doorbell pressed"
when
    Channel "unifiprotect:camera:myNvr:frontdoor:ring" triggered PRESSED
then
    logInfo("protect", "Doorbell pressed")
end

// Or handle any ring payload generically
rule "Front doorbell ring generic"
when
    Channel "unifiprotect:camera:myNvr:frontdoor:ring" triggered
then
    val String payload = receivedEvent.getEvent() // PRESSED, RELEASED
    logInfo("protect", "Doorbell ring event: {}", payload)
end

// Floodlight PIR motion trigger
rule "Driveway PIR motion"
when
    Channel "unifiprotect:light:myNvr:driveway:pir-motion" triggered
then
    logInfo("protect", "Driveway PIR motion")
    // Optionally turn on the light for a bit
    sendCommand(Light_Driveway_OnOff, ON)
    createTimer(now.plusSeconds(30), [ | sendCommand(Light_Driveway_OnOff, OFF) ])
end

// Sensor opened/closed with payload
rule "Garage sensor opened"
when
    Channel "unifiprotect:sensor:myNvr:garagedoor:opened" triggered
then
    val String payload = receivedEvent.getEvent() // door, window, garage, leak, none
    logInfo("protect", "Garage sensor opened: {}", payload)
end

rule "Garage sensor closed"
when
    Channel "unifiprotect:sensor:myNvr:garagedoor:closed" triggered
then
    val String payload = receivedEvent.getEvent() // door, window, garage, leak, none
    logInfo("protect", "Garage sensor closed: {}", payload)
end

// Sensor water leak
rule "Garage water leak"
when
    Channel "unifiprotect:sensor:myNvr:garagedoor:water-leak" triggered
then
    val String payload = receivedEvent.getEvent() // door, window, garage, leak, none
    logWarn("protect", "Water leak detected by garage sensor: {}", payload)
end

Tips and Tricks

Main UI Widgets

It can be helpful to display a live preview of multiple cameras in the MainUI using low quality streams, much like the UniFi Protect app, where clicking on a camera preview opens a higher quality version in a popup. The following widget creates a preview card for a camera, muting the audio and will open another widget or page when clicked anywhere on the card. Use the "low" quality stream for this preview widget, and the "high" quality stream for the popup, such as a dedicated page with a single video widget for the camera. A modest server can support dozens of simultaneous streams for MainUI clients with many camera views in a single page.

uid: unifi-webrtc-video-preview
tags: []
props:
  parameters:
    - description: Thing UID
      label: Thing UID
      name: thingUid
      required: true
      type: TEXT
  parameterGroups:
    - name: clickAction
      context: action
      label: Click Action
component: f7-card
config: {}
slots:
  default:
    - component: oh-video
      config:
        hideControls: true
        playerType: webrtc
        posterURL: ='/unifiprotect/media/image/' + props.thingUid + '?quality=low'
        startMuted: true
        style:
          position: absolute
        url: ='/unifiprotect/media/play/' + props.thingUid + ':low'
    - component: oh-button
      config:
        actionPropsParameterGroup: clickAction
        style:
          height: 100%
          margin: 0px
          opacity: 100%
          position: absolute
          top: 0px
          width: 100%

Caught a mistake or want to contribute to the documentation? Edit this page on GitHub (opens new window)
